Processing

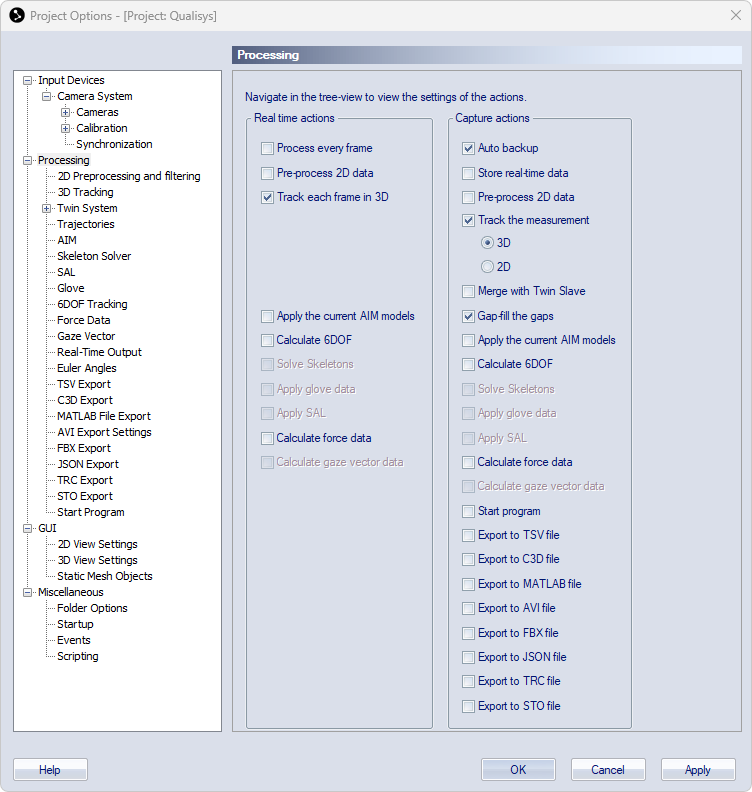

The Processing branch of the options tree contains options for actions that can be performed on the 2D data. The options have an effect on the 2D data in real-time (preview), during a measurement and after the measurement, for information see chapters Processing data and Real-time streaming. For batch process a similar processing page is used see chapter Batch processing.

The following actions can be performed:

• Auto backup (only Capture action), see chapter Auto backup.

• Process every frame (only Real time action). For more information, see chapter Outline of how to use real time.

• Store real-time data (only Capture action), see chapter Store real-time data.

• Pre-process 2D data

• Track each frame

  • 3D

  • 2D (only Capture action)

    3D and 2D tracking are mutually exclusive and can therefore not be used at the same time.

• Merge with Twin Slave (only Capture action)

• Gap-fill the gaps (only Capture action)

• Apply the current AIM model

• Solve skeletons

• Apply SAL

• Apply glove data

• Calculate 6DOF

• Calculate force data

• Calculate gaze vector data , see How to use eye tracker devices for supported devices.

• Export to TSV file (only Capture action)

• Export to C3D file (only Capture action)

• Export to Matlab file (only Capture action)

• Export to AVI file (only Capture action)

• Export to FBX file (only Capture action)

• Export to JSON file (only Capture action)

• Export to TRC file (only Capture action)

• Export to STO file (only Capture action)

• Start program (only Capture action)

The actions can be defined separately for Real-time and Capture. Select each action that will be used from the processing steps list. The settings for each option can be reached by clicking on the corresponding page in the tree to the left.

The following processing pages are not associated with actions, but the options affect real-time output and the representation of rotations:

• Real-Time output

• 6DOF analog export

• Euler Angles
