TSV export

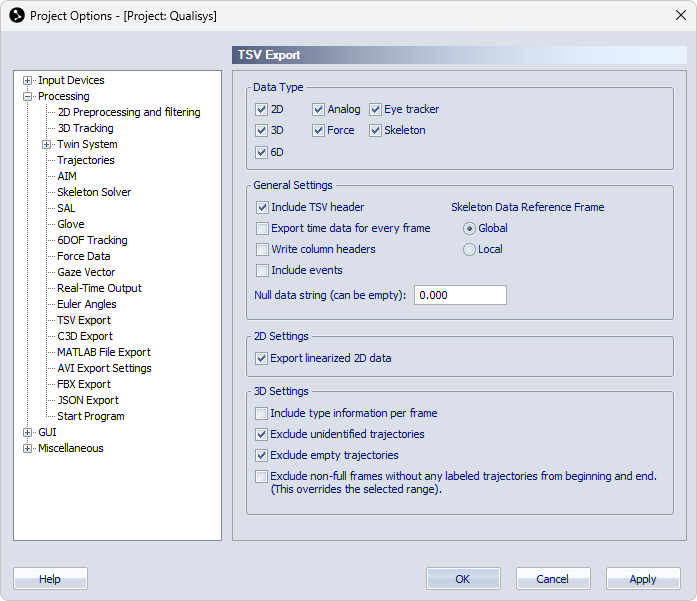

On the TSV export page there are settings for the TSV export. For information about the TSV export see chapter Export to TSV format.

Data type

Under the Data type to export headings you can select which data types to export by checking the items. Each data type is exported as a separate file with a suffix added to the file name. The following types of motion data can be selected:

  • 2D data

    Export the 2D data of the capture file.

  • 3D data

    Export the 3D data of the capture file.

  • 6D data

    Export the 6DOF data of the capture file.

  • Analog data

    Export the analog data of the capture file.

  • Force data

    Export the force and moment data of the capture file.

  • Eye tracker data

    Export eye tracker data of the capture file.

  • Skeleton data

    Export skeleton data of the capture file.

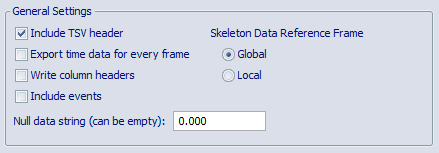

General settings

The settings under the General export settings heading are applied to all TSV exports. The settings are:

  • Include TSV header

    Include the TSV header with information about the capture file in the exported file.

  • Export time data for every frame

    Include two columns with frame number and measurement time for each frame in the exported TSV file. The time data will be entered in the first two columns of the file. If the SMPTE timecode exist, it will be added as a third column after the measurement time.

    For Non-periodic external timebase you will not be guaranteed to get the correct timestamps, because the actual frequency of the measurement is unknown.

  • Write column headers

    Include a header over each column of data, which describes the data in that column. E.g. for 3D data the three different positions (Toe X, Toe Y and Toe Z)

  • Include events

    Include the events in the 2D, 3D and 6DOF TSV file.

  • Null data string

    Set the data string for empty data frames in a trajectory, e.g. ‘0’, ‘-‘ or ‘NULL’. Do not write the quotation marks. The null data string can be empty, i.e. it does not need to contain a character.

  • Skeleton Data Reference Frame

    Specify if the skeleton data is exported in global or local coordinates.

2D settings

The setting under the 2D Settings heading is only applied to 2D data. The Export linearized 2D data setting is enabled by default. Disable the setting to export raw unlinearized 2D data.

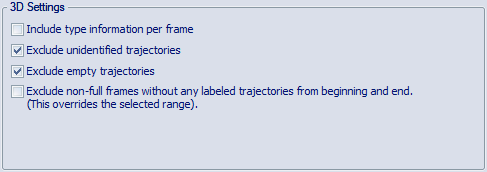

3D Settings

The settings under the 3D Settings heading are only applied to 3D data. The settings are:

  • Include type information per frame

    Include a column for each trajectory with the trajectory type per frame.

  • Exclude unidentified trajectories

    Exclude unidentified trajectories from the exported file.

  • Exclude empty trajectories

    Exclude empty trajectories without data (e.g. a new label) from the exported file.

  • Exclude non-full frames from beginning and end where any of the labeled trajectories are not found

    Exclude completely empty frames of the labeled trajectories, in the beginning and the end of the measurement.
