JSON export

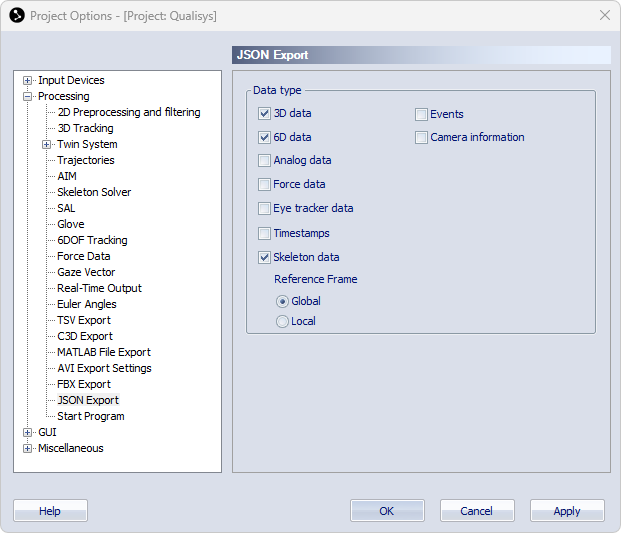

On the JSON export page there are settings for the JSON export. For more information about the JSON export, see chapter Export to JSON file.

The following data types can be exported.

• 3D data

  All of the 3D data will be included, both labeled and unidentified.

• 6D data

  Include 6DOF data.

• Analog data

  All of the analog data will be included, both data from analog boards and EMG.

• Force data

  Include force data.

• Eye tracker data

  Include eye tracker data.

• Timestamps

  Include timestamps for each camera frame, according to Timestamp settings.

• Skeleton data

  Include skeleton data. Use the Reference Frame option to specify if the skeleton data is exported in global or local coordinates.

• Events

  Include events.

• Camera information

  Include information about the cameras.
