GUI

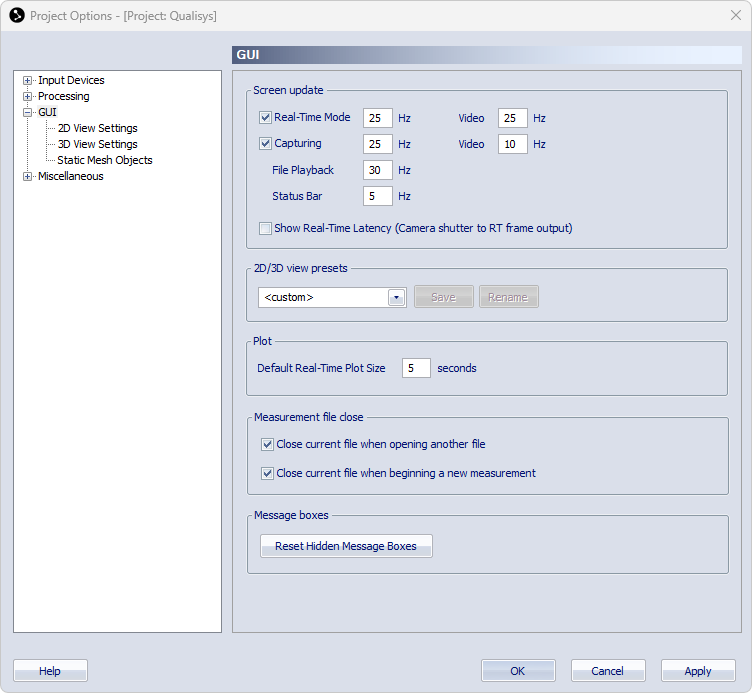

The GUI page contains display related settings. All of the GUI settings are applied both in RT and on files. On the GUI page there are settings for the Screen update and for Close previous measurement file. Under the GUI main page there are pages for 2D View Settings, 3D View Settings and Static Mesh Objects.

The Screen update options can be used to optimize the performance of the computer. Most of the time 15 Hz is enough for the screen update as the eye cannot register movements faster than 25 Hz.

• Real-Time mode
  Set the frequency for the screen update during real time (preview). Uncheck the check-box next to the setting to disable the GUI during preview. The screen update rate for Video can be set independently.

• Capturing
  Set the frequency for the screen update during capturing. Uncheck the check-box next to the setting to disable the GUI during capture. The screen update rate for Video can be set independently.

• File playback
  Set the frequency for the screen update during file playback.

• Status bar
  Set the frequency for the update of the numbers in the status bar.

• Show Real-Time Latency
  Enable the display of the latency in the status bar, for more information see chapter Real time latency.

The 2D/3D view presets options are used to control and save presets for the 2D and 3D GUI.

• Preset drop-box
  Select the preset from the Preset drop-box. There are two standard presets: QTM default and QTM High Contrast. These can be used to set the default settings respectively to change the colors to improve the visibility in sunlight.
  Then there are 8 user presets that can be saved with any 2D view and 3D view settings.

• Save
  To save a preset select one of the 8 user presets in the Preset drop-box and then click on Save. All of the settings on the 2D view settings and 3D view settings pages are saved to the preset.

• Rename
  Rename the currently selected preset.

The Plot options are used to control some plot window settings.

• Default Real-Time Plot Size
  Default data buffer duration when plotting data in Preview mode, used when creating a new plot or applying a Windows layout while in Preview.

The Measurement file close options are used to control how QTM closes files automatically.

• When opening another file
  The current file is closed when opening another file (Open in the File menu).

• When beginning a new measurement
  The current file is closed when starting a new measurement (New in the File menu).

Use the Reset hidden message boxes button to display all message boxes that have been hidden. E.g. the message box about the force plate position after a calibration.
