Firmware update

QTM will detect automatically if the camera firmware needs to be updated or downgraded in the following cases. The firmware update is done via the Qualisys Firmware Installer (QFI). For more information about QFI, see chapter How to use Qualisys Firmware Installer (QFI).

Firmware update when locating system

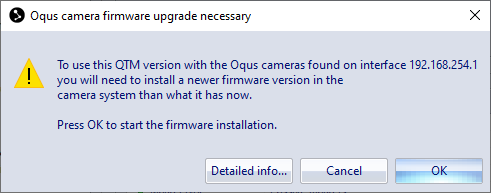

The following dialog will appear when QTM has detected an old firmware when you are locating the system on the Camera System page in the Project options dialog.

• Detailed info...
  Open a dialog with information on why QTM needs to update the firmware.

• Cancel
  Cancel the update. However, you cannot use the system with the current QTM version until you have updated the firmware.

• OK
  Start the firmware update program Qualisys Firmware Installer (QFI).

Firmware update when starting preview

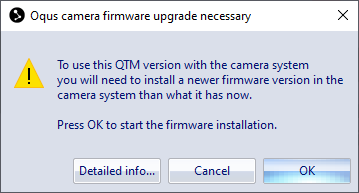

The following dialog will appear when QTM has detected an old firmware when you start a preview with New on the File menu.

• Detailed info...
  Open a dialog with information on why QTM needs to update firmware.

• Cancel
  Cancel the update. However, you cannot open a new file until you have updated the firmware.

• OK
  Start the firmware update program Qualisys Firmware Installer (QFI).
