Gaitway-3D

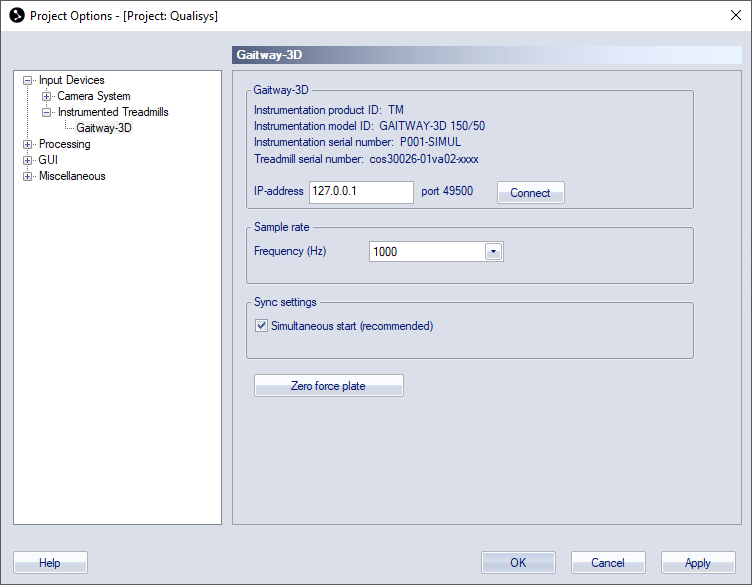

The Gaitway-3D device settings are managed via the Gaitway-3D settings page. Once the Gaitway-3D device is set up correctly, the force calculation can be defined under the force plate settings, see chapter Force plate settings.

For information about how to connect and set up a Gaitway-3D treadmill for use with QTM, see chapter Connecting a Gaitway-3D instrumented treadmill.

The Gaitway-3D settings page contain the following sections.

• Gaitway-3D
  Connection settings and information about the connected device. The local server address of the Gaitway-3D data stream must be specified in the IP-address field. Press the Connect button to connect to the Gaitway-3D data stream.

• Sample rate
  Select the sample rate in Hz of the Gaitway-3D data stream from the Frequency drop down menu.

• Sync settings
  Check the Simultaneous start option for synchronizing the Gaitway-3D data with QTM captures.

• Zero force plate
  Press the Zero force plate button to set the zero level of the force plate when unloaded.
