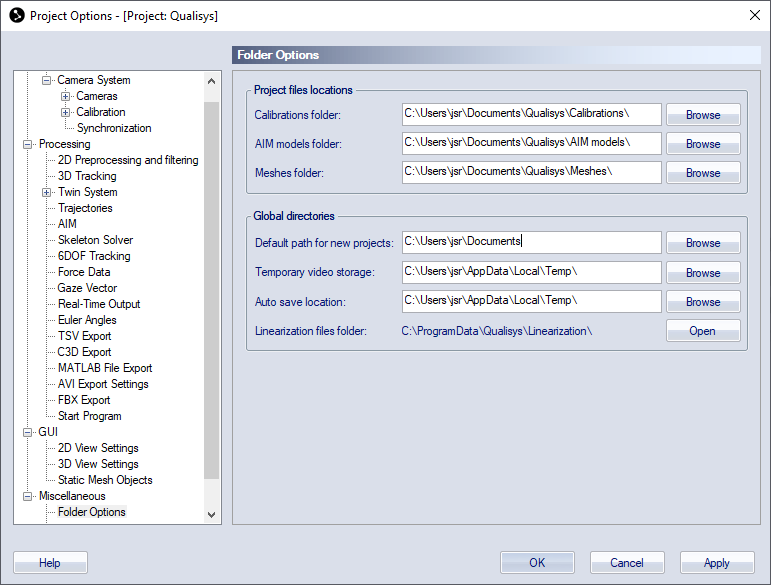

Folder options

The Folder options page contains the settings for the locations of the following file types saved by QTM.

The Project files locations are different for each project.

  • Calibration folder

    The Calibrations folder is by default set to a folder called Calibrations in the Project folder. It can be changed to another folder with the Browse option, for example if you want all of the calibrations in different projects to be saved in the same folder. However, then you must change it manually in each project.

  • AIM models folder

    The AIM models folder is by default set to a folder called AIM models in the Project folder. It can be changed to another folder with the Browse option, for example if you want all of the AIM models in different projects to be saved in the same folder. However, then you must change it manually in each project.

  • Meshes folder

    The Meshes folder is by default set to a folder called Meshes in the Project folder. It can be changed to another folder with the Browse option, for example if you want to use the same meshes tin different projects. However, then you must change it manually in each project.

The Global directories are used by all projects.

  • Default path for new projects

    The default path is used when you create a new project. Change it with the Browse option, if you do not want the Documents folder to be the default folder to save the projects in.

  • Temporary video storage

    The Temporary video storage is used for storage of the temporary video files of Qualisys video and external video cameras. It can be changed to another folder with the Browse option, which can be useful if the actual file will be stored on another hard-drive than the temporary file.

  • Auto save location

    The auto save location is used for storage of the temporary auto saved captures in case Auto backup is enabled under Capture actions on the Processing page. It can be changed to another folder with the Browse option, which can be useful if the actual file will be stored on another hard-drive than the temporary file.

  • Linearization files folder

    The camera linearization files are stored in a folder that can be accessed by all users of the computer.
