Using the camera sync unit

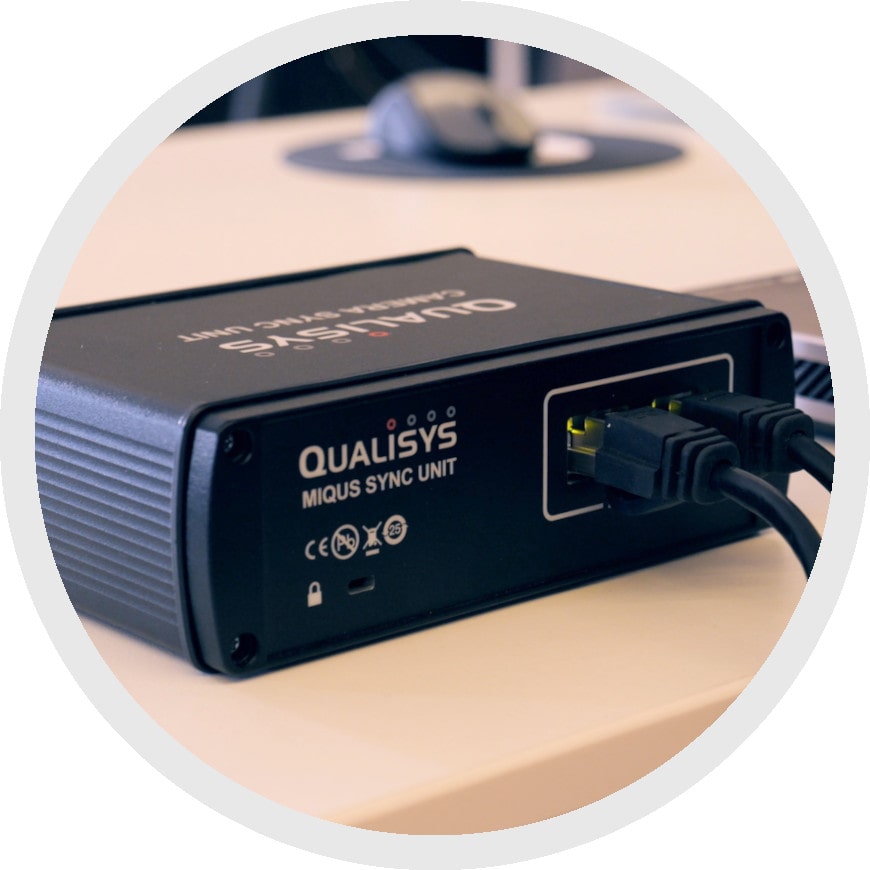

The Qualisys camera sync unit is used to synchronize your cameras with external devices such as force plates, analog boards, EMG systems, and time code generators. It also allows you to externally start and stop recordings, trigger the simultaneous start of equipment, and add events during a capture. The sync unit connects directly into your daisy chain and is fully supported in QTM, with a wide range of synchronization options in the software.

The following chapters walk you through the input and output ports on the sync unit and give an overview of the relevant settings in QTM.

Prefer to watch the tutorial?
How to use the camera sync unit
