Adding to an existing model

Once you are confident that the marker labels are assigned correctly throughout the new trial, you can add it to your AIM model.

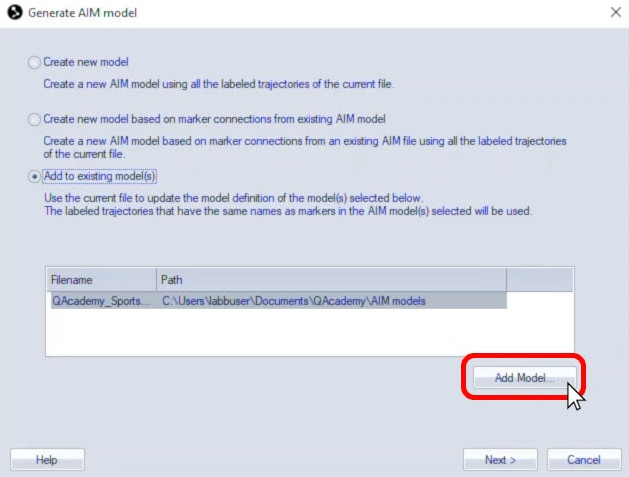

1. Click the generate model icon.



2. Select “Add to existing model(s).”



3. QTM will display the models present in your project, and you can select one or more of them.



4. If the model you want to use is not listed, click “Add model” to browse for it.

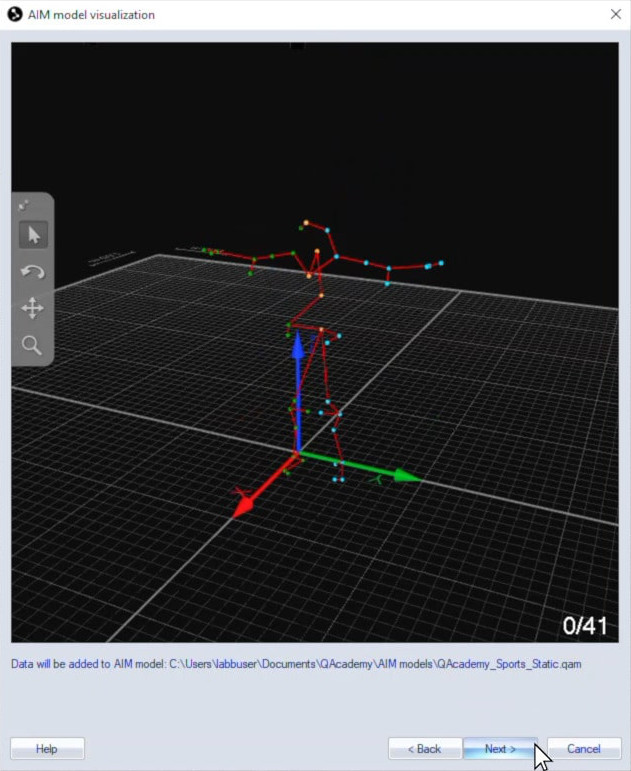

5. Click “Next” to preview the expanded AIM model.



6. Click “Next” again, and QTM will update the AIM model to include the new dimensions.
