Underwater mounting options
There are two options for underwater wall mounts:
-
Fixed wall mount for Arqus and Miqus, respectively. The wall mount is a single piece that is bolted directly to the wall and the camera is attached to the wall mount. This option is useful when the mounting is permanent and there is no need to move cameras or take them out of the water.
-
Quick attach mounts for Arqus and Miqus. This option is useful when the cameras will be taken out of the water or when several mounting point options are desired.

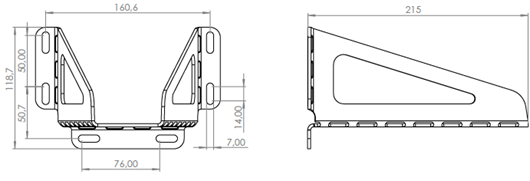

Arqus wall mount
Drawing of the mechanics and dimensions of the Arqus wall mount.
|
|
|
|

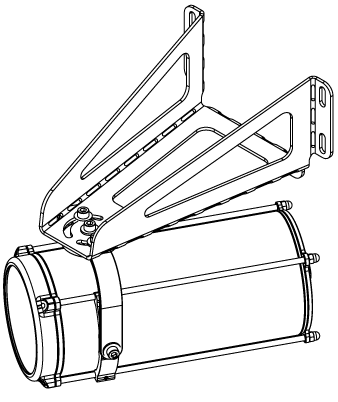

Miqus wall mount

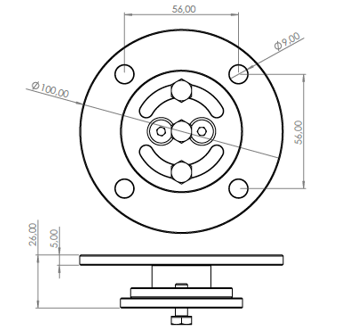

Mount foot
|
|
|
|

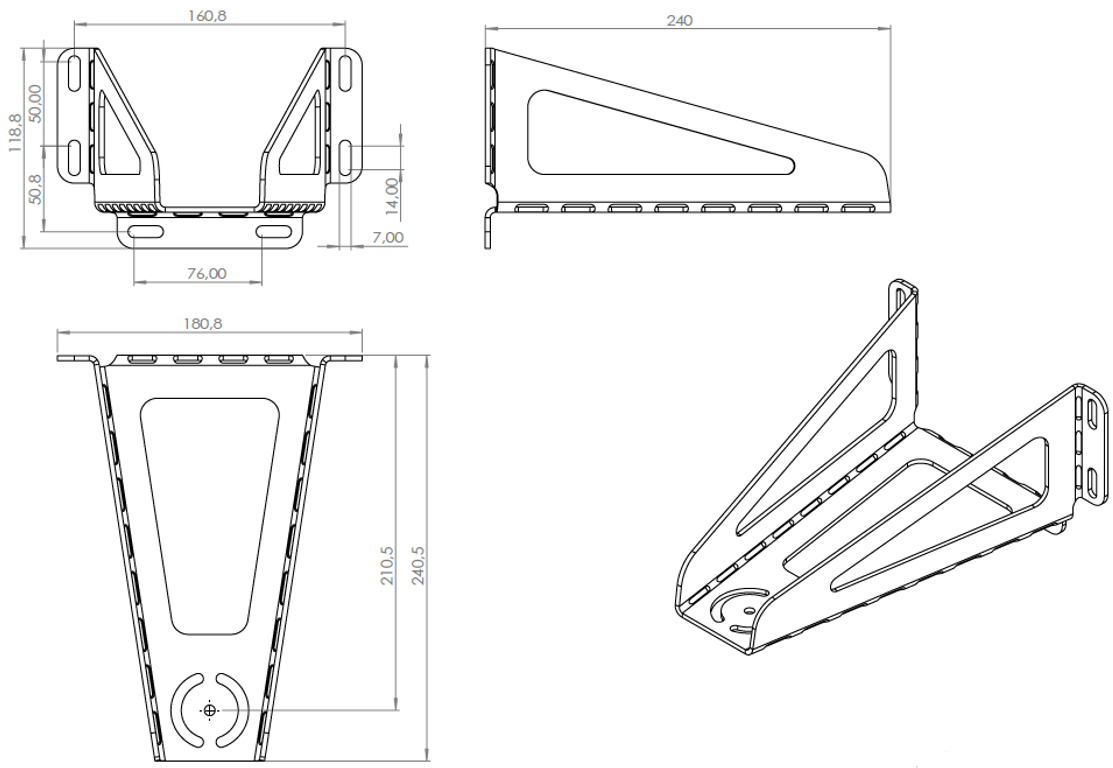

Wall mount
|
|
Quick Attach mount
A Quick Attach (QA) mount is available for both Arqus and Miqus underwater cameras. The Quick Attach mount consists of two parts:
-
A Quick Attach mount base, which is similar for Arqus and Oqus Quick Attach mounts.
-
A Quick Attach camera mount for Arqus and Miqus cameras, respectively.

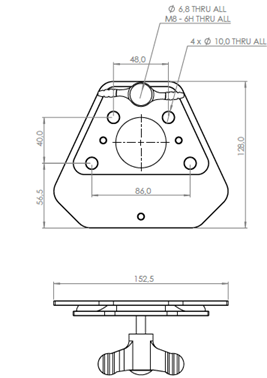

Quick Attach mount base
The QA mount base is mounted to the wall through four 10 mm holes. Use one QA mount base per camera position.
|
|
|
|

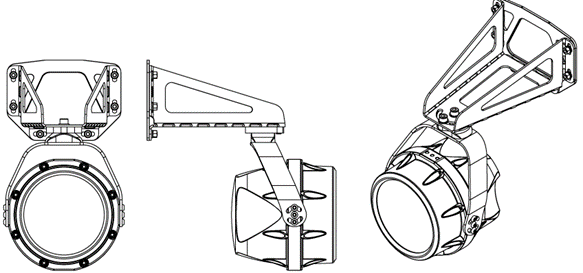

Arqus Quick Attach mount
The QA Arqus mount is easily mounted to the QA base and locked into place using the Wing grip. At the bottom of the mount there is a slot for an optional M6x10mm screw to fixate the mount to the base.
Use one QA Arqus mount per camera.
Miqus Quick Attach mount
The QA Miqus mount is easily mounted to the QA base and locked into place using the Wing grip. At the bottom of the mount there is a slot for an optional M6x10mm screw to fixate the mount to the base.
Use one QA Miqus mount per camera.
|
|
