USB-1608G

The USB-1608G is a portable A/D board that can easily be connected to any computer with a USB port. The board has 16 analog channels and is distributed in a case with BNC connections for the analog signals and the synchronization signal. For instructions how to install the board see chapter Installing the USB-1608G board.

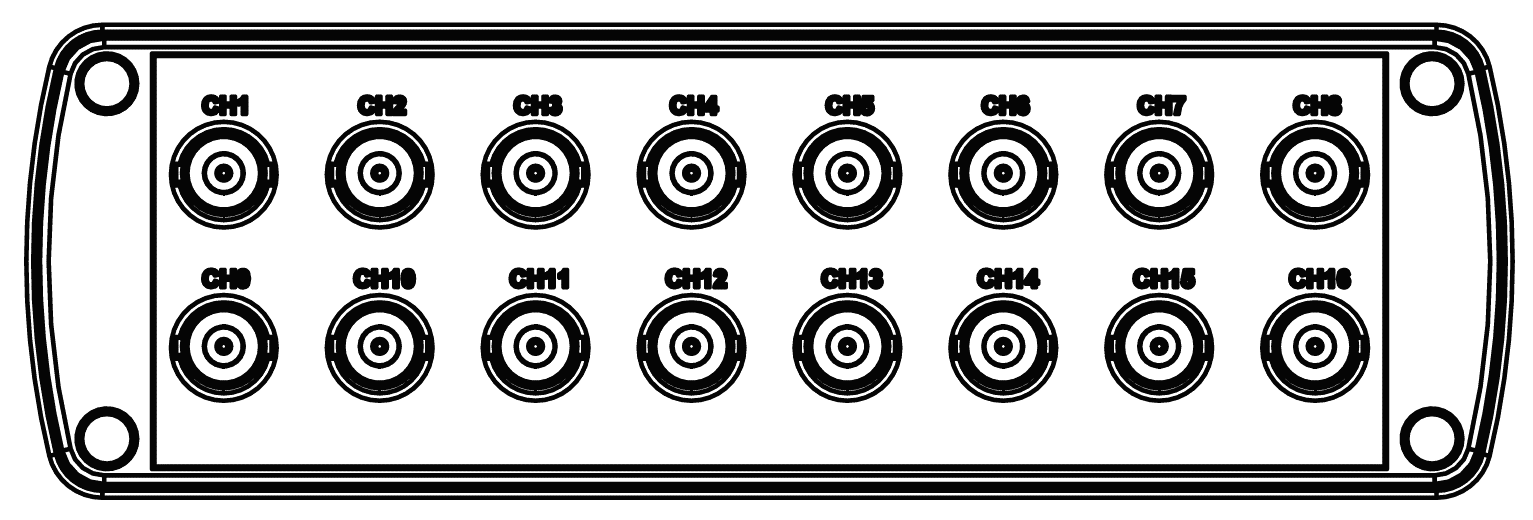

The following connections are available on the front view of the board:

• CH1 - CH16
  BNC connections for the 16 analog channels.

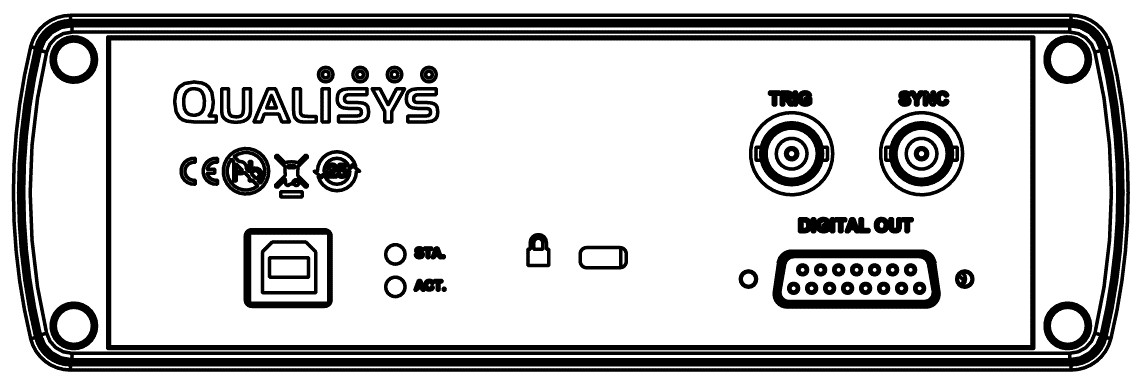

The following connections are available on the rear view of the board:

• SYNC
  BNC connection for frame synchronization of the analog capture.

• TRIG
  BNC connection for synchronous start of the analog capture.

• DIGITAL OUT
  Not in use.

• USB
  USB connection to the measurement computer. The cable is supplied by Qualisys.

• STA. LED
  The Status LED turns on when the device is detected and installed on the computer.

• ACT. LED
  The Activity LED blinks when data is transferred, and is off otherwise.

USB-1608G specifications

Materials	Extruded and die-cast Aluminum housing
Weight	910g
Channels	16 single ended
ADC resolution	16 bits
Input voltage range	±10V, ±5V, ±2V and ±1V software selectable per channel
Trigger input	5V TTL
Synchronization input	5V TTL
Digital outputs	Not in use
Data/power connection	Compatible with USB 1.1, USB 2.0 and USB 3.x ports
