How to connect

Arqus and Miqus

Each camera has a high-quality underwater connector, which connects to a water-protected connection unit placed on land. The cable carries both power and data. A connection unit drives up to three underwater cameras from one power supply and several connection units can be connected, either daisy-chained or in a star configuration through an Ethernet switch.

Arqus and Miqus underwater cameras can be freely combined in a system and share the same connection unit.

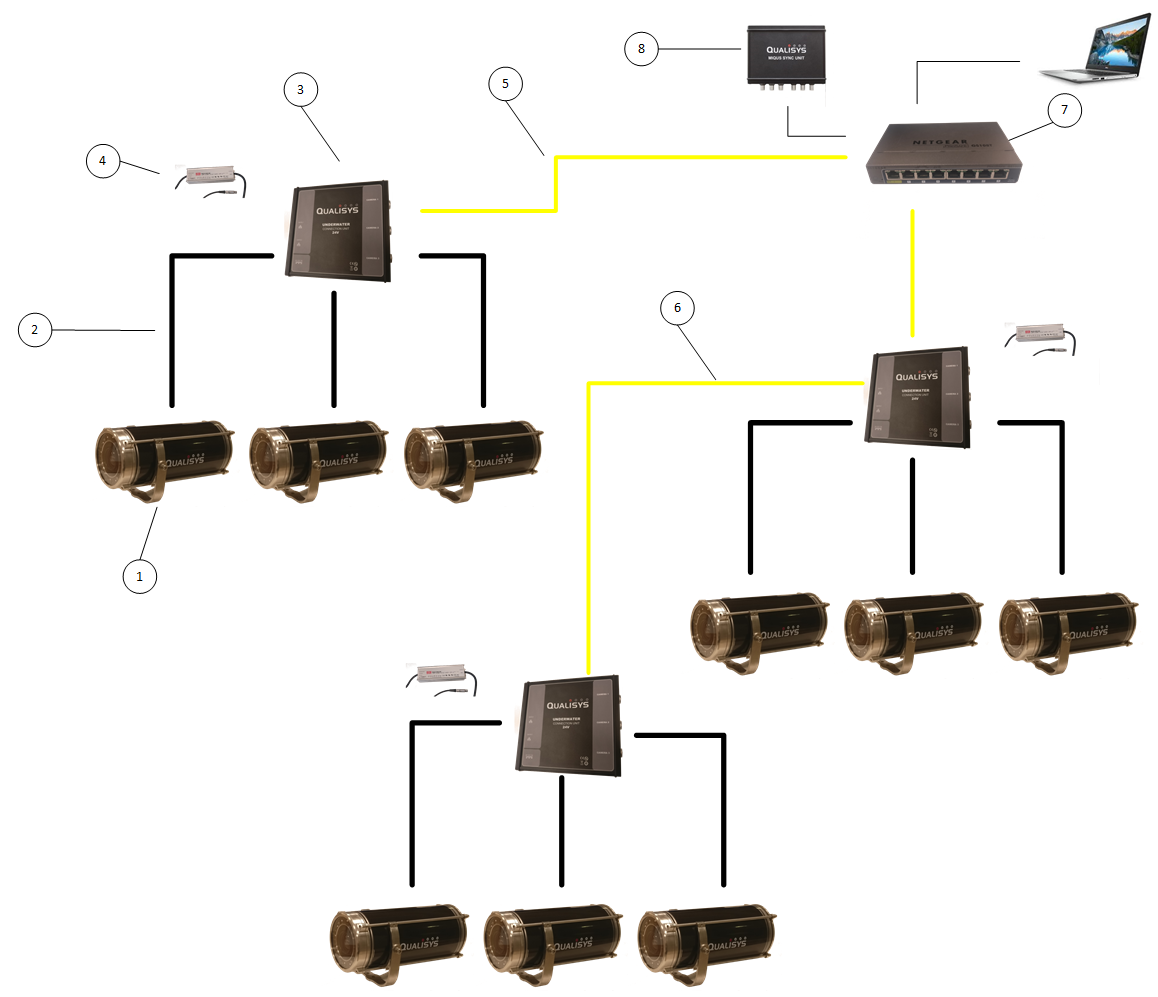

The schematic below shows an example of how to connect an underwater system with 24V connection units and power supplies. A Camera Sync Unit can be added to the system through an Ethernet switch.

Oqus

An Oqus system is connected in a similar way, but make sure that you use Oqus the correct 48V connection units and power supplies.
