Description of Miqus cameras

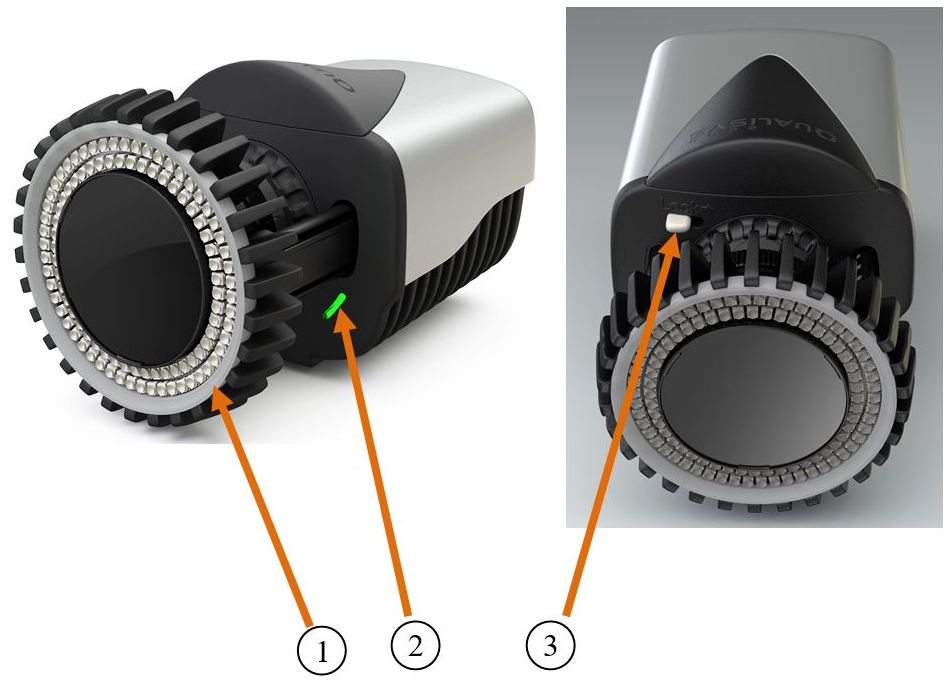

Miqus camera: front side

1. LED ring
   LED ring for camera identification and indication of status during startup sequence.

   • Green light: Active camera indicator (see Identifying the cameras with the identification tool).

   • Pulsing green light: Camera system being calibrated.

   • Amber light: Camera is booting.

   • Pulsing amber light: Camera is waiting for IP address.

2. Measurement status indicator

   • Green light: The system is ready to start a measurement.

   • Yellow light: The system is measuring.

   • Flashing green light: The camera is synchronizing to the master device.

   • Flashing red light: Error signal.

3. Lock lever

   • Lock/unlock the strobe mechanics.

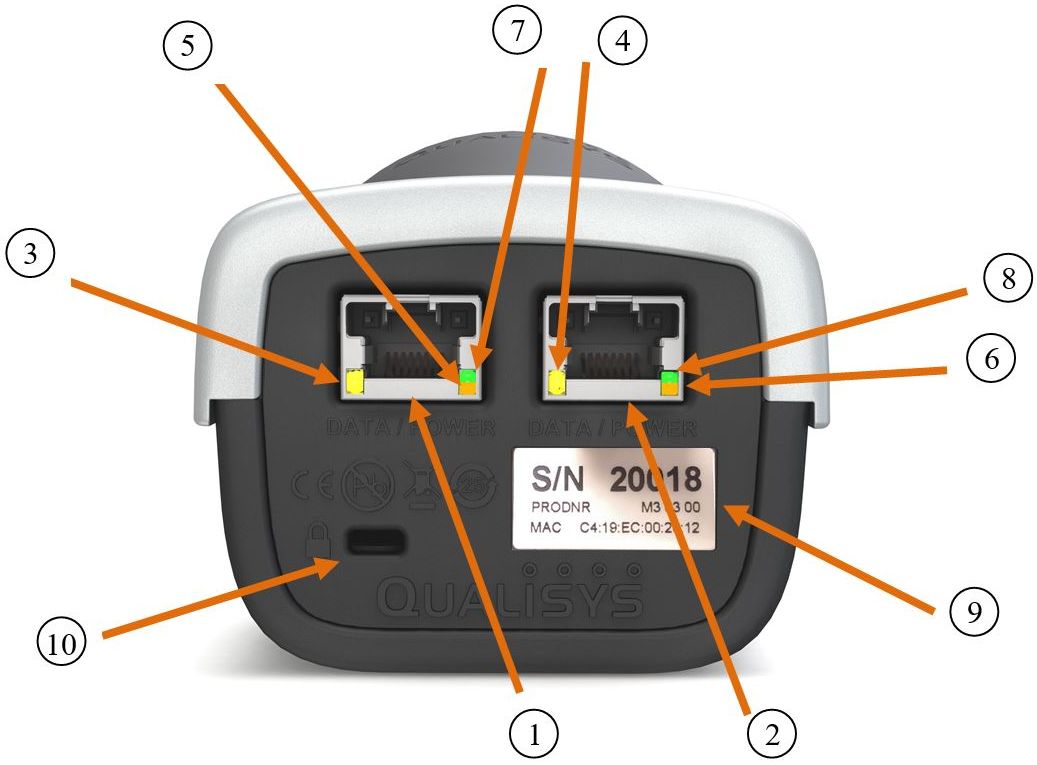

Miqus camera: back side

1. Left daisy-chain data/power port
   Combined Power/Gigabit Ethernet connector.

2. Right daisy-chain data/power port
   Combined Power/Gigabit Ethernet connector.

3. Left port Link/Activity indicator
   Shows the status of the ethernet connection. Fixed yellow light means that a carrier signal has been sensed and that the connection is up. Flashing yellow light indicates that data is received and/or transmitted.

4. Right port Link/Activity indicator
   Identical to left indicator.

5. Left port Gigabit link indicator
   Lit orange when Gigabit Ethernet link is established.

6. Right port Gigabit link indicator
   Identical to left indicator.

7. Left port Power indicator
   Lit green when the camera is powered on.

8. Right port Power indicator
   Lit green when the camera is powered on.

9. Camera identification
   This label shows:

   • The serial number of the camera.

   • The product number.

   • The Ethernet Mac address.

10. Kensington Security Slot
    Slot for connecting a security cable.
