Advanced

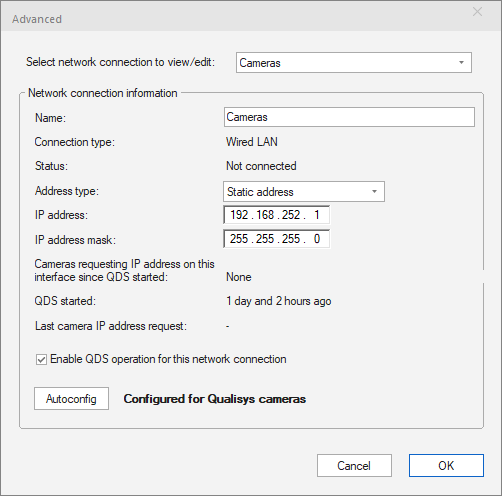

The Advanced settings dialog is opened with Advanced... in the QDS menu. The QDS dialog contains settings for the enabled network interfaces on the computer. These settings can be used instead of the QDS wizard or the Windows network settings.

  • Select network connection to view/edit
    Select the network that you want to edit in the dialog. The list is in the same order as in Windows and if a network is disabled in Windows network connections it will not be shown in the list.

  • Name
    Current name of the network.

  • Connection type
    Type of network: wired LAN or wireless LAN.

  • Status
    Current status of the connection: Connected or Not connected.

  • Address type
    Select the wanted address type between these two types:

    • Received through DHCP
      The network will receive its IP address from a DHCP server. The standard setting for many networks.

    • Static address
      The network is set to a static IP address with the settings below. This setting must be used for QDS to give IP addresses to Qualisys cameras.

  • IP address
    Current IP address of the network. The address can be changed when Address type is set to Static address.

  • IP address mask
    Current IP address mask of the network. The mask can be changed when Address type is set to Static address.

  • Cameras requesting IP address on this interface since QDS started
    Number of Qualisys cameras requesting IP address on the network.

  • QDS started
    Time since QDS started.

  • Last camera IP address request
    Time since last camera IP address request.

  • Enable QDS operation for this network connection
    Activate QDS on the network, i.e. if QDS is disabled for the network, Qualisys cameras connected on that network will not get any IP address from this QDS. When networks with static IP addresses are disabled it will be shown on the QDS icon.

    • Some of the networks with static IP addresses have been disabled.

    • All of the networks with static IP addresses have been disabled.

  • Autoconfig
    Use this button to configure the network interface for Qualisys cameras.
