Project presets

The project presets can be used when creating projects to make sure that you start with the same settings. The project preset contains all of the settings QTM (Project options and other settings such as those in the Start capture dialog). The preset also contains any AIM model that was in the project AIM folder when creating the preset.

The presets are saved globally, in the folder C:\Users\...\AppData\Roaming\Qualisys\Project presets\, so that it can always be accessed when creating projects in QTM.

To create a preset follow these steps:

  1. Open a project with the settings and AIM models that you want to use.

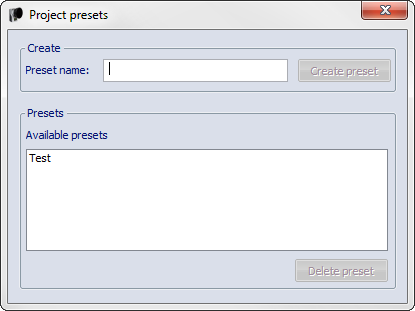

  2. Go to the File menu and select Settings management/Project presets to open the Project presets dialog.
  3. Enter the name of the preset and click on Create preset.

To use a preset follow these steps:

  1. Go to the File menu and select New project.
  2. Enter a Project name and select the settings to Base the new project on from the drop-down list. The presets are listed as Custom preset: followed by the name.

Maintenance of presets

If you want to change any settings in a preset you need to create a project with the preset and then change the settings. Then create the preset again with the same name.

A preset can be deleted from the Project presets dialog.
