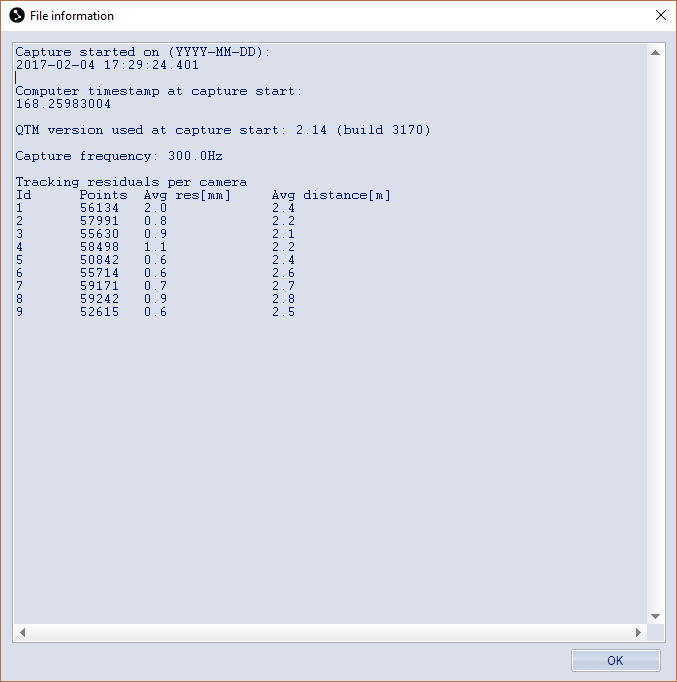

File Information

The File Information window shows the following information about the capture.

• Start of capture as date and time according to the computer clock.


• Computer timestamp at start of capture in seconds and ticks from when the computer was started.

  The time stamp is recalculated when trimming the file.

  The time stamps indicate the start of the capture according to the QTM software. The time stamps may not exactly correspond to the first frame of the capture and it is discouraged to use them for synchronization with data from other devices connected to the same or another synchronized computer.

• QTM version used for the capture.

• Capture frequency used for marker tracking in Hz.

• Analog devices used for the capture and their respective capture frequencies.

• Tracking information per camera, including number of points, tracking residuals and average distance to the tracked markers.
